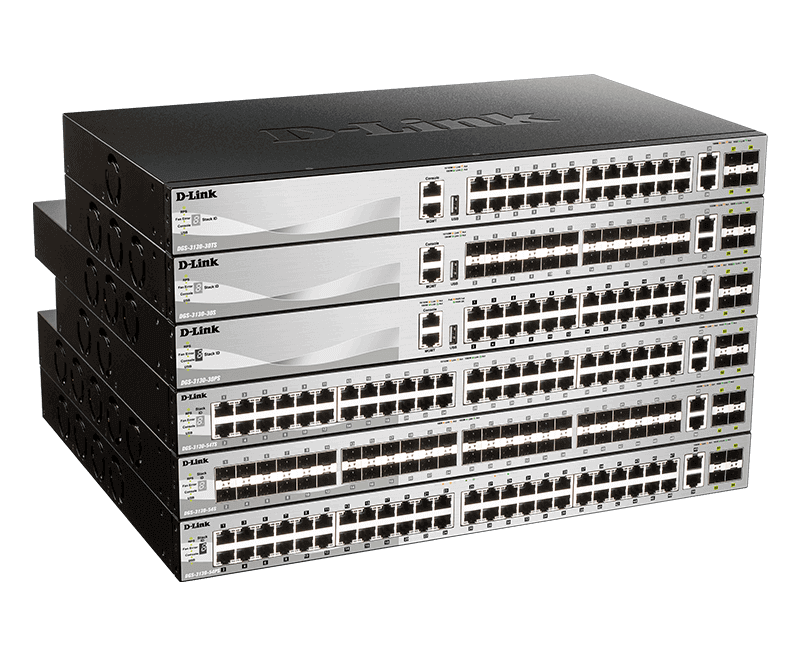

Introduction of Managed Switches
Managed switches are networking devices that allow for greater control and customization of a network’s performance and security. Unlike unmanaged switches, which operate with default settings and offer limited configuration options, managed switches allow network administrators to monitor and manage traffic flow, prioritize data packets, and apply security protocols to protect against unauthorized access and data breaches.
Managed switches offer a variety of advanced features, including VLAN (Virtual Local Area Network) support, QoS (Quality of Service) controls, and link aggregation. VLANs allow network administrators to segment traffic into separate virtual networks, improving network performance and security by isolating data traffic between different groups of users or devices. QoS controls prioritize network traffic, ensuring that high-priority data packets receive priority over less critical traffic. Link aggregation allows multiple physical connections between switches to be combined into a single logical connection, increasing bandwidth and improving network redundancy.
Managed switches are an essential tool for businesses and organizations that require advanced networking capabilities, such as large-scale data centers, campus networks, and enterprise-level networks. They provide greater flexibility and control over network performance and security, enabling network administrators to optimize network performance, improve efficiency, and reduce the risk of security breaches.
Types of Managed Switches
There are several types of managed switches, each with different features and capabilities to meet the specific networking needs of different organizations. Here are some of the most common types:
Layer 2 Managed Switches:
These switches are designed to operate at the Data Link Layer of the OSI model and can be used to create VLANs, manage network traffic, and configure basic security features such as MAC filtering.
Layer 3 Managed Switches:
These switches can perform routing functions and operate at the Network Layer of the OSI model, allowing for more advanced routing capabilities and support for protocols such as OSPF and BGP.
PoE (Power over Ethernet) Managed Switches:
These switches provide power to connected devices through Ethernet cables, eliminating the need for separate power sources and simplifying network cabling. PoE switches are commonly used to power IP phones, cameras, and access points.
Gigabit Managed Switches:
These switches support Gigabit Ethernet speeds, offering faster data transfer rates and improved network performance compared to Fast Ethernet switches.
10 Gigabit Managed Switches:
These switches support 10 Gigabit Ethernet speeds, providing even faster data transfer rates and increased bandwidth for high-performance applications such as data center networking and video streaming.
Cloud-Managed Switches:
These switches are managed through a cloud-based interface, allowing for remote management and monitoring from anywhere with an internet connection.
Industrial Managed Switches:
These switches are designed for use in harsh environments such as factories and outdoor settings, with features such as ruggedized enclosures, temperature and humidity controls, and resistance to electrical interference.
Components of a Managed Switch
Managed switches are complex networking devices that consist of several key components, each of which plays a critical role in the device’s overall functionality. Here are the primary components of a managed switch:
Processor:
The processor is the “brain” of the switch, responsible for controlling its operation and executing the firmware that manages its functions.
Memory:
Managed switches typically have two types of memory: RAM and Flash. RAM is used for the temporary storage of data and firmware, while Flash memory stores the switch’s operating system, configuration settings, and firmware.
Ethernet Ports:
The Ethernet ports on a managed switch allow devices to connect to the network, with each port supporting a specific speed (e.g., 10/100/1000 Mbps or 10 Gbps).
Management Interface:
Managed switches have a web-based or command-line interface that allows network administrators to configure and manage the switch’s settings and features.
Power Supply:
Managed switches require power to operate, and they can be powered by either an external power supply or Power over Ethernet (PoE).
Switching Fabric:
The switching fabric is responsible for managing the flow of data between connected devices and is comprised of a combination of hardware and firmware.
Fans:
Managed switches generate heat during operation, and fans are used to cool the device to prevent damage to the components.
Security Features:
Managed switches typically include a variety of security features such as VLANs, access control lists, and port security to protect the network from unauthorized access and attacks.
Quality of Service (QoS) Features:
QoS features allow network administrators to prioritize network traffic, ensuring that high-priority data packets receive priority over less critical traffic, which can help improve network performance and efficiency.
Features of Managed Switches
Managed switches provide several features that enable network administrators to customize and optimize network performance and security. Here are some of the key features of managed switches:
VLAN Support:
Managed switches allow network administrators to create and manage VLANs, which can improve network performance, security, and efficiency by separating network traffic into different virtual networks.
Quality of Service (QoS):
Managed switches provide QoS controls that allow network administrators to prioritize traffic based on its importance, ensuring that high-priority traffic receives priority over less-critical traffic.
Link Aggregation:
Link aggregation allows multiple physical connections between switches to be combined into a single logical connection, increasing bandwidth and improving network redundancy.
Port Mirroring:
Port mirroring allows network administrators to monitor network traffic by copying traffic from one port to another, providing insights into network activity and troubleshooting potential issues.
Security Features:
Managed switches provide a variety of security features, including access control lists (ACLs), port security, and 802.1X authentication, to protect against unauthorized access and data breaches.
Management and Monitoring:
Managed switches provide a variety of management and monitoring capabilities, including web-based interfaces, command-line interfaces (CLIs), and Simple Network Management Protocol (SNMP), which allow network administrators to monitor and manage network performance and security.
Redundancy and Resiliency:
Managed switches offer features such as Spanning Tree Protocol (STP), Rapid Spanning Tree Protocol (RSTP), and Link Aggregation Control Protocol (LACP) to improve network redundancy and resiliency, ensuring that network downtime is minimized.
IPv6 Support:
Managed switches provide support for IPv6, which is becoming increasingly important as more devices connect to the internet and the available IPv4 addresses become scarce.
Conclusion
In conclusion, managed switches are essential networking devices that provide advanced features and capabilities for managing and optimizing network performance and security. They offer a wide range of benefits over unmanaged switches, including VLAN support, QoS controls, link aggregation, port mirroring, security features, management and monitoring capabilities, redundancy and resiliency features, and IPv6 support. With the ability to customize and optimize network settings and features, managed switches are an essential tool for network administrators in today’s complex networking environments.
